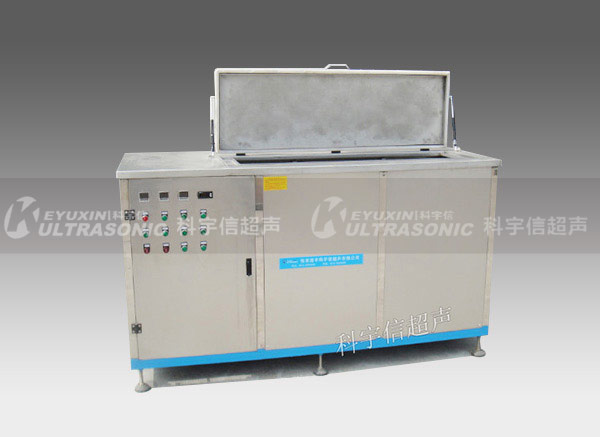

KYX4004V超聲波氣相清洗機 將工件放置在裝入有機溶劑的超聲波清洗槽內，通過強烈的超聲波空化作用，使工件在極短的時間內清洗干凈。再把工件放在清洗機的蒸汽區內，工件在遇到蒸汽后產生凝露，并與工件表面污物產生作用，隨著液滴滑落而帶走污物，再將工件提起，放在上部的冷凝區中冷凝干燥，超聲波氣相清洗機采用有機溶劑為清洗劑，具有極強的溶解污垢能力，在經過超聲波清洗后效果更加顯著。
Ultrasonic wave gas phase clearer when clean lays aside the work piece in loads the organic solvent in the ultrasonic wave
rinse bath, through the intense ultrasonic wave cavitation, causes the work piece in a short time to clean cleanly. Places
again the work piece in clearer's steam area, the work piece after meeting the steam produces congeals the dew, and has
the function with the work piece surface contamination, falls along with the bubble carries off the contamination, mentions
upside again the work piece, places in the condensation area the condensation to be dry, the ultrasonic wave gas phase
clearer uses the organic solvent is the cleansing agent, has the greatly strengthened dissolved dirt ability, after undergoing
the ultrasonic cleaning the effect is more remarkable.
【應用范圍】
電子零件及線路板上的松香，粉末冶金件上的防銹油，空調蒸發器，精密機械零件上的油脂表帶表殼上的污垢等的清洗。
【Scope】
Onelectronic part and line board rosin, powder metallurgy on pickling oil, air conditioning evaporator, in
precision machinery components fat watch band watch case's dirt and so on clean.
【產品特點】
1、全不銹鋼結構，結構緊湊合理，美觀大方。
2、加熱及自動恒溫系統，恒溫范圍30℃-110℃（可調）
3、外置工業冷氣機及內置冷凝盤管，有效地防止清洗劑揮發，降低使用成本。
4、另設有蒸餾回收系統，清洗劑可循環再用。
5、設有檢測及安全保護，液位保護，溫度保護，冷氣機過載保護等。
6、設置溶劑過濾系統，確保溶劑的清潔。
7、另可根據客戶不同需求設置自動化機械臂系統。
【Product characteristic】
1、 It made of imported stainless steel plate and components,
all stainless steel structure,looks good and durable.
2、Heating and automatic temperature control system, the
temperature range of 30。C ~110。C (adjustable).
3、External industrial chiller and inside cooling coil units,
Effectively prevent the cleaning agent volatile to reduce the
production cost.
4、It has the distillation recovery system,cleaning agent
that can be reused.
5、It has the detection and security protection,respectively has the level protection,temperature control,chiller overload
protection and so on.
6、Provide filtration system to ensure cleanliness solution.
7、It can increase robotic arm system according to the automer’s automation request.

工藝流程：超聲粗洗→超聲精洗→冷漂洗→冷凝干燥
